 | Thermally Protection with Better Insulation One body injected insulation case provides better insulation between coil and silicon steel. Thermal protector prevents motor overheating. |
Electricity Saving The conversion efficiency of our fans is generally about 10% higher than other manufacturers by applying Advanced Geometry design. |  |
 | Longer products lifetime The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans. |
Stronger Impeller StructureOne body injected impeller has stronger structure and better balance compared with impeller mounted with a metal plate. |  |
A Leader in Innovation
Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into Industrial Suction Centrifuge Air Blower Fan. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each Industrial Suction Centrifuge Air Blower Fan carries Shyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturers. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.
Industrial Suction Centrifuge Air Blower Fan
Quick Detail 1
Industrial Suction Centrifuge Air Blower Fan
Air Flow : 460 ~ 525 CFM |
Impeller : Plastic PA (Polyamide Glass-fiber Reinforced) |
Motor : Capacitor-Run Induction and External Rotor Motor |
Rotor : Black Paint |
Bearing : Dual Ball Bearing, Permanently Lubricated |
Operating Voltage Range : 85VAC to 125VAC for 115V Type 185VAC to 245VAC for 230V Type |
Lead Wire : AWG# 20 UL |
Insulation : Class “B” or “F” |
Safety : Thermally Protected (Auto Restart) |
Operating Temperature : -20°C to +70°C |
Weight : 1420g |

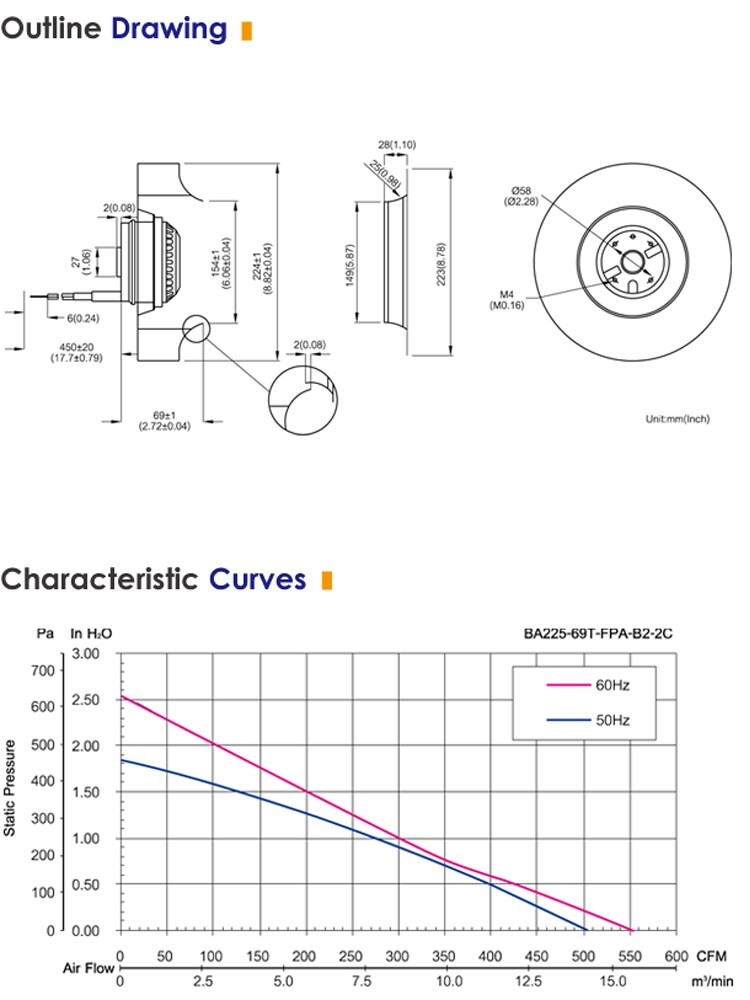

Item CodeBA1V225-69T-FPA-B2-2C | |||||||||
Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Capacitor |
115V | 50/60 | 0.91/1.03 | 95/119 | 2600/3000 | 460/525 | 13.03/14.87 | 1.96/2.67 | 68/71 | 12μF/200VAC |
Item CodeBA2V225-69T-FPA-B2-2C | |||||||||
Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Capacitor |
230V | 50/60 | 0.46/0.53 | 95/119 | 2600/3000 | 460/525 | 13.03/14.87 | 1.96/2.67 | 68/71 | 3μF/400VAC |
 |
Professional & Customized Service
SHYUAN YA Group was founded in 1982 with more than 30 years experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers. Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.
|
 |
Short Production Time & Prompt Delivery
SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment.Our production lines include plastic injection, motor winding, and die casting processing lines. Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.
|
 |
Quality Stability & Reliability
To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA The air flow chamber that can be used for measuring air flow for any kind of fan. and measurement range up to 1,300 CFM.
|
Industrial Suction Centrifuge Air Blower Fan
Customer Services:
1. Warranty: 1 year warranty for all products.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Just in time delivery: Normally, Lead time is 30 days.
5. Customized Service: As we have our own molding department,
customized service can be provided.
6. Prompt customers Services: E-mail will be replied in 24 hours.
Industrial Suction Centrifuge Air Blower Fan
Questions & Answers:
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size、Air Flow、Voltage of required fans
is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples
of required fans for testing because the truly performance of fans can be
fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage
quantities increase, please provide the information to our sales.
We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty. Every product has its own
production code. This code is able to track the production time.
Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we accept OEM orders.
Industrial Suction Centrifuge Air Blower Fan
