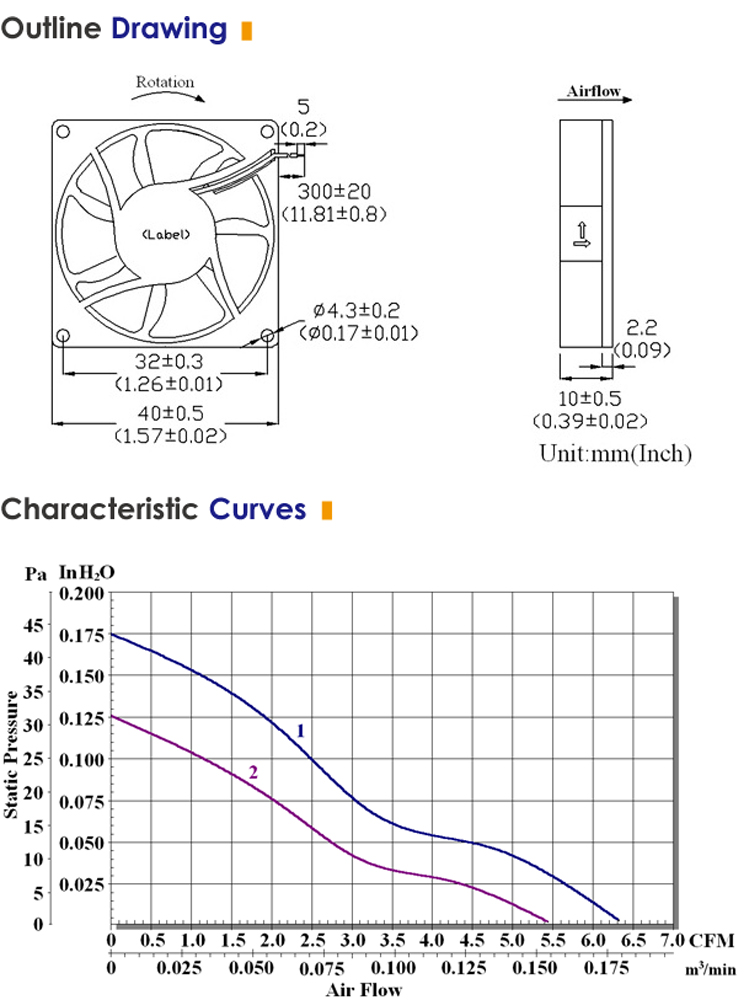

40x40x10mm Forced DC Cooling Fan Motor For Laptop

Model No.
AD40-10T
Made in
Taiwan
Request for Quotation


    Innovator in Air Movement Solutions

    Spec

    • Type:Roots

    Key Features

    40x40x10mm Forced DC Cooling Fan Motor For Laptop

    A Leader in Innovation

    Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into 40x40x10mm Forced DC Cooling Fan Motor For Laptop. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each 40x40x10mm Forced DC Cooling Fan Motor For Laptop carries Shyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturer. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.



    Quick Detail 1

    40x40x10mm Forced DC Cooling Fan Motor For Laptop

    Air Flow : 5.4 ~ 6.3 CFM

    Housing : Thermoplastic PBT, UL94V-0

    Impeller : Thermoplastic PBT, UL94V-0

    Bearing : Ball or Sleeve

    Termination : Lead Wire UL 2468 AWG#26

                          Red Wire: Positive Voltage (V+)

                          Black Wire: Negative Voltage (V-)

                          Yellow Wire: Function

    Operating Temperature : -10°C to +70°C for Sleeve Type

                                             -20°C to +80°C for Ball Type

    Weight : 13.7g

    Function : Function type is optional

                      P: Lock Protection

                  A: Rotation Detector

                       I: Frequency Generator



    AD40-10T





    AD40-10T

    40x40x10mm Forced DC Cooling Fan Motor For Laptop

    Item CodeAD05V40-10T-FPH-B7-N1

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    5V

    NONE

    0.18

    0.9

    7000

    6.3

    0.18

    0.175

    31

    NONE

    Item CodeAD05V40-10R-FPH-B7-N2

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    5V

    NONE

    0.14

    0.7

    6000

    5.4

    0.15

    0.125

    26

    NONE

    Item CodeAD12V40-10T-FPH-B7-N1

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    12V

    NONE

    0.10

    1.2

    7000

    6.3

    0.18

    0.175

    31

    NONE

    Item CodeAD12V40-10T-FPH-B7-N2

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    12V

    NONE

    0.09

    1.1

    6000

    5.4

    0.15

    0.125

    26

    NONE

    Item CodeAD24V40-10T-FPH-B7-N1

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    24V

    NONE

    0.06

    1.4

    7000

    6.3

    0.18

    0.175

    31

    NONE



    SHYUAN YA

    Company Overview 1.jpg



    Professional & Customized Service



    SHYUAN YA Group was founded in 1982 with more than 30 years experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers.

    Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.



    198230 years experienceUp to 85%
    Set upManufacturing experienceSelf-Manufacturing



    Production Equipment 1



    Short Production Time & Prompt Delivery



    SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment.Our production lines include plastic injection, motor winding, and die casting processing lines.

    Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.



    Over two million US dollars16 lines4~6 weeks
    Investment fundsAssembling linesMass Production



    Inspection Equipment 1.jpg



    Quality Stability & Reliability



    To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA

    The air flow chamber that can be used for measuring air flow for any kind of fan.

    and measurement range up to 1,300 CFM.



    100% products inspectionsDown to 10.0 dBAUp to 1,300 CFM
    High standardBackground noiseMeasurement range



    40x40x10mm Forced DC Cooling Fan Motor For Laptop


    Packing and Delivery.jpg





    Customer Services:

    1. Warranty: 1 year warranty for all products.

    2. Private Labelling: All of axial fans are able to be Private labeled.

    3. Products Quality: 100% products inspection before delivery.

    4. Just in time delivery: Normally, Lead time is 30 days.

    5. Customized Service: As we have our own molding department,

        customized service can be provided.

    6. Prompt customers Services: E-mail will be replied in 24 hours.




    Questions & Answers:

    Q: What information do you need to provide in order to get a quotation?

    A: Generally, information about Size、Air Flow、Voltage of required fans

    is needed in order to select a right fan for you and provide you a quotation.

    Q: Can I have samples for testing before ordering products?

    A: Yes, we sincerely suggest that customers should have some samples

    of required fans for testing because the truly performance of fans can be

    fully demonstrated after testing is conducted.

    Q: Can I have a discount for the quoted price?

    A: The quoted price is based on annual usage quantity. If annual usage

    quantities increase, please provide the information to our sales.

    We will provide you a further discount.

    Q: What is the warranty of products?

    A: All of our products have 1 year warranty. Every product has its own

    production code. This code is able to track the production time.

    Q: Could you print our company LOGO on the nameplate and package?

    A: Yes, we accept OEM orders.






    40x40x10mm Forced DC Cooling Fan Motor For Laptop


    Payment Details

    • Payment Terms:TT ,PayPal
