Small Powerful Industrial Smoke Suction 200mm Duct Fan

Model No.
AA200-80T-FMC
Made in
Taiwan
Request for Quotation
Contact Supplier


    Innovator in Air Movement Solutions

    Spec

    • Type:High Pressure

    Key Features

    Small Powerful Industrial Smoke Suction 200mm Duct Fan





    Thermally Protection with Better Insulation

    One body injected insulation case provides better insulation between coil and silicon steel. Thermal protector prevents motor overheating.







    Electricity Saving

    The conversion efficiency of our fans is generally about 10% higher than other manufacturers by applying Advanced Geometry design.




    Longer products lifetime


    The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans.


    Stronger Impeller Structure


    The blades of metal axial fan are directly welded onto rotor providing firm and solid structure.




    Small Powerful Industrial Smoke Suction 200mm Duct Fan

    A Leader in Innovation

    Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into Small Powerful Industrial Smoke Suction 200mm Duct Fan. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each Small Powerful Industrial Smoke Suction 200mm Duct Fan carries Shyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturer. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.

    Quick Detail 1

    Small Powerful Industrial Smoke Suction 200mm Duct Fan

    Air Flow : 497~611 CFM

    Housing : Die-cast Aluminum

    Blades : Sheet-Steel, Welded onto Rotor

    Motor : Capacitor-Run Induction and External Rotor Motor

    Bearing : Dual Ball Bearing, Permanently Lubricated

    Termination : Terminals

    Operating Voltage Range : 85VAC to 125VAC for 115V Type

                                                  185VAC to 245VAC for 230V Type

    Insulation : Class “B” or “F”

    Safety : Thermally Protected (Auto Restart)

    Operating Temperature : -20°C to + 60°C (Humidity 30%~85% RH)

    Weight : 1920g

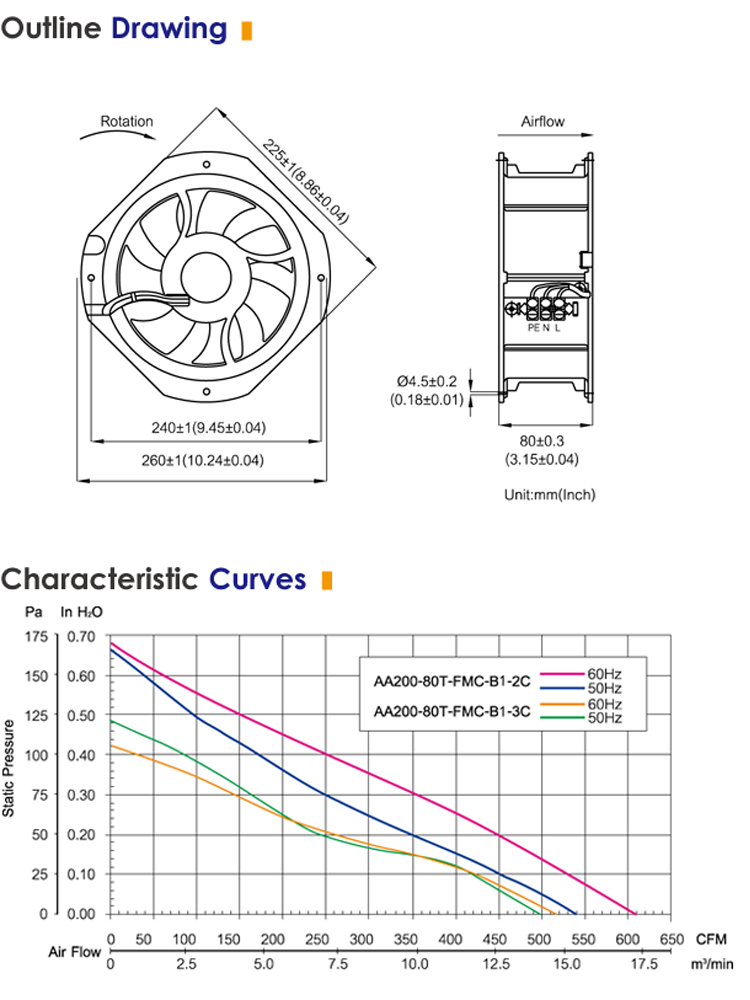

    AA200-80T

    Small Powerful Industrial Smoke Suction 200mm Duct Fan

    Item CodeAA1V200-80T-FMC-B7-2C

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    115V

    50/60

    0.68/0.65

    66/74

    2480/2830

    538/611

    15.2/17.3

    0.68/0.69

    60/63

    6μF/200VAC

    Item CodeAA2V200-80T-FMC-B7-2C

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    230V

    50/60

    0.33/0.33

    66/75

    2490/2820

    538/609

    15.2/17.2

    0.68/0.69

    60/63

    1.5μF/400VAC

    Item CodeAA1V200-80T-FMC-B7-3C

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    115V

    50/60

    0.40/0.53

    46/60

    2360/2450

    499/517

    14.1/14.7

    0.48/0.42

    58/59

    6μF/200VAC

    Item CodeAA2V200-80T-FMC-B7-3C

    Rated
    Voltage

    Frequency
    (Hz)

    Rated
    Current(A)

    Input
    Power(W)

    Speed
    (RPM)

    Air Flow
    (CFM)

    Air Flow
    (m3/min)

    Static Pressure
    (inch-H2O)

    Noise
    dB(A)

    Capacitor
    (uF)

    230V

    50/60

    0.20/0.26

    44/58

    2360/2440

    497/517

    14.0/14.7

    0.48/0.42

    58/59

    1.5μF/400VAC



    SHYUAN YA

    Company Overview 1.jpg



    Professional & Customized Service



    SHYUAN YA Group was founded in 1982 with more than 30 years experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers.

    Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.



    198230 years experienceUp to 85%
    Set upManufacturing experienceSelf-Manufacturing



    Production Equipment 1



    Short Production Time & Prompt Delivery



    SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment.Our production lines include plastic injection, motor winding, and die casting processing lines.

    Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.



    Over two million US dollars16 lines4~6 weeks
    Investment fundsAssembling linesMass Production



    Inspection Equipment 1.jpg



    Quality Stability & Reliability



    To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA

    The air flow chamber that can be used for measuring air flow for any kind of fan.

    and measurement range up to 1,300 CFM.



    100% products inspectionsDown to 10.0 dBAUp to 1,300 CFM
    High standardBackground noiseMeasurement range

     Small Powerful Industrial Smoke Suction 200mm Duct Fan




    Packing and Delivery.jpg



    Customer Services:

    1. Warranty: 1 year warranty for all products.

    2. Private Labelling: All of axial fans are able to be Private labeled.

    3. Products Quality: 100% products inspection before delivery.

    4. Just in time delivery: Normally, Lead time is 30 days.

    5. Customized Service: As we have our own molding department,

        customized service can be provided.

    6. Prompt customers Services: E-mail will be replied in 24 hours.



    Questions & Answers:

    Q: What information do you need to provide in order to get a quotation?

    A: Generally, information about Size、Air Flow、Voltage of required fans

    is needed in order to select a right fan for you and provide you a quotation.

    Q: Can I have samples for testing before ordering products?

    A: Yes, we sincerely suggest that customers should have some samples

    of required fans for testing because the truly performance of fans can be

    fully demonstrated after testing is conducted.

    Q: Can I have a discount for the quoted price?

    A: The quoted price is based on annual usage quantity. If annual usage

    quantities increase, please provide the information to our sales.

    We will provide you a further discount.

    Q: What is the warranty of products?

    A: All of our products have 1 year warranty. Every product has its own

    production code. This code is able to track the production time.

    Q: Could you print our company LOGO on the nameplate and package?

    A: Yes, we accept OEM orders.





    Small Powerful Industrial Smoke Suction 200mm Duct Fan



    Product Certification

    CE Marking (EU Standards) The safety mark is a mandatory conformity mark on designated products placed on the single market in the European Union (EU). This mark is possible to be affixed to only the products that conform to the safety regulation, that the directives from the ministerial conference of the European Communities show.
