120x120x38mm AC 220v Exhaust Axial Blower Fan

Model No.
A12C38T-IU
Made in
Taiwan
Request for Quotation


    Innovator in Air Movement Solutions

    Spec

    • Type:High Pressure

    Key Features








    Better Impedance Protection


    One body injected insulation case provides better insulation between coil and silicon steel.
    The possibility of electric leakage reduces dramatically.





    Electricity Saving

    The conversion efficiency of our fans is generally about 10% higher than other manufacturers by applying Advanced Geometry design.




    Longer products lifetime


    The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans.

    120x120x38mm AC 220v Exhaust Axial Blower Fan

    A Leader in Innovation

    Each year, Shyuan Ya raises the bar further by incorporating the cutting edge designs and the high quality materials into 120x120x38mm AC 220v Exhaust Axial Blower Fan. High precision bearings, which are long life and maintenance free, are all standard. Additionally, each 120x120x38mm AC 220v Exhaust Axial Blower Fan carries Shuyuan Ya's patented silicon lamination designs which have higher metal induction and lower magnetic loss than any other manufacturers. Most importantly, 100% products inspection is conducted in the end of production line in order to provide high standard and reliable products toward customers.





    Quick Detail 1

    120x120x38mm AC 220v Exhaust Axial Blower Fan

    Air Flow : 85 ~ 97 CFM
    Housing : Die-Cast Aluminum, Painted Black
    Impeller : Thermoplastic PBT, UL94V-0
    Motor : Shaded-Pole Motor
    Bearing : Ball or Sleeve
    Termination : Terminals or Lead Wire
    Operating Voltage Range : 85VAC to 125VAC for 115V Type
                                                    185VAC to 245VAC for 230V Type
    Insulation : Class “B” or “F”
    Safety : Impedance Protected
    Operating Temperature : -10°C to + 70°C for Sleeve Type
                                                    -20°C to + 80°C for Ball Type
    Weight : 515g

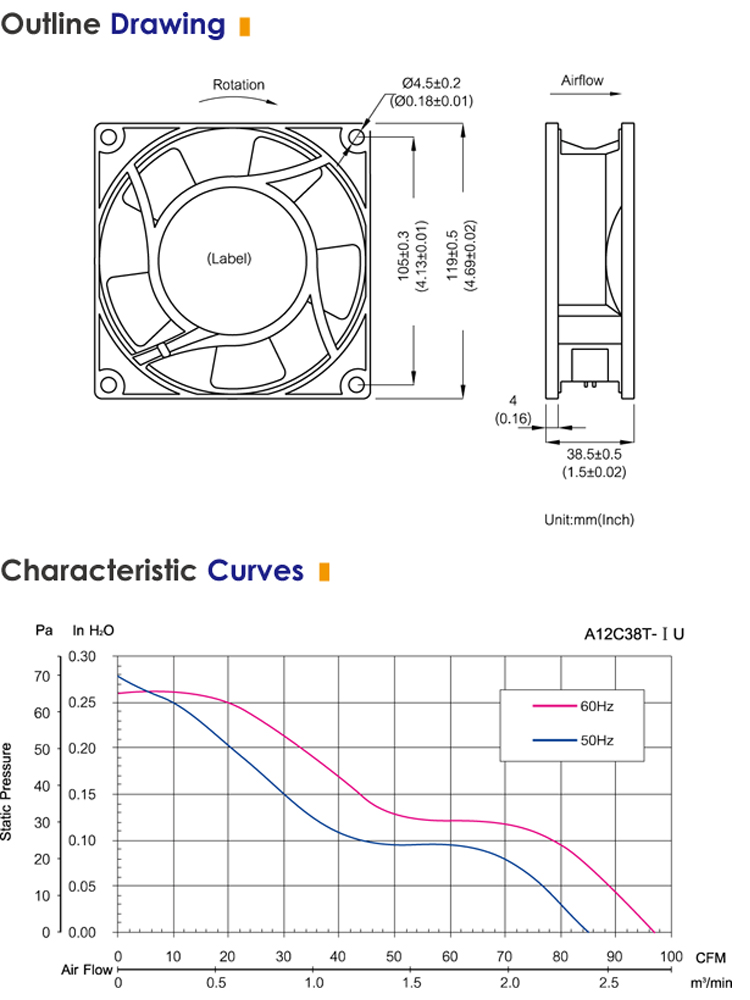

    a12c38t

    A12C38T-IU

    A12C38T-IU
    120x120x38mm AC 220v Exhaust Axial Blower Fan
    Item CodeA1V12C38TBL-IU
    Rated
    Voltage
    Frequency
    (Hz)
    Rated
    Current(A)
    Input
    Power(W)
    Speed
    (RPM)
    Air Flow
    (CFM)
    Air Flow
    (m3/min)
    Static Pressure
    (inch-H2O)
    Noise
    dB(A)
    Capacitor
    (uF)
    115V
    50/60
    0.26/0.21
    20/16
    2600/3000
    85/97
    2.40/2.80
    0.28/0.26
    44/48
    NONE
    Item CodeA2V12C38TBL-IU
    Rated
    Voltage
    Frequency
    (Hz)
    Rated
    Current(A)
    Input
    Power(W)
    Speed
    (RPM)
    Air Flow
    (CFM)
    Air Flow
    (m3/min)
    Static Pressure
    (inch-H2O)
    Noise
    dB(A)
    Capacitor
    (uF)
    230V
    50/60
    0.13/0.10
    20/16
    2700/3100
    85/97
    2.40/2.80
    0.28/0.26
    44/48
    NONE


    SHYUAN YA

    Company Overview 1.jpg



    Professional & Customized Service



    SHYUAN YA Group was founded in 1982 with more than 30 years experience in fan industry. Our professional teams in molding and R&D departments can provide technical suggestions and customized services to our customers.

    Besides,up to 85% of fan components including fan motors are made in our factories which located in Taiwan.



    198230 years experienceUp to 85%
    Set upManufacturing experienceSelf-Manufacturing



    Production Equipment 1



    Short Production Time & Prompt Delivery



    SHYUAN YA Group has invested over two million US dollars on upgrading production facilities & inspection equipment.Our production lines include plastic injection, motor winding, and die casting processing lines.

    Most importantly, maximum 16 Assembling lines can shorten production time which normally takes about 4~6 weeks.



    Over two million US dollars16 lines4~6 weeks
    Investment fundsAssembling linesMass Production



    Inspection Equipment 1.jpg



    Quality Stability & Reliability



    To ensure that high standard and reliable products are delivered to our customers,100% products inspections are conducted at the end of production line. Our main inspection equipment includes Semi-Anechoic Room which is one of the biggest sizes in the fan industry and background noise down to 10.0 dBA

    The air flow chamber that can be used for measuring air flow for any kind of fan.

    and measurement range up to 1,300 CFM.



    100% products inspectionsDown to 10.0 dBAUp to 1,300 CFM
    High standardBackground noiseMeasurement range

    120x120x38mm AC 220v Exhaust Axial Blower Fan


    Packing and Delivery.jpg




    Customer Services:

    1. Warranty: 1 year warranty for all products.

    2. Private Labelling: All of axial fans are able to be Private labeled.

    3. Products Quality: 100% products inspection before delivery.

    4. Just in time delivery: Normally, Lead time is 30 days.

    5. Customized Service: As we have our own molding department,

        customized service can be provided.

    6. Prompt customers Services: E-mail will be replied in 24 hours.



    Questions & Answers:

    Q: What information do you need to provide in order to get a quotation?

    A: Generally, information about Size、Air Flow、Voltage of required fans

    is needed in order to select a right fan for you and provide you a quotation.

    Q: Can I have samples for testing before ordering products?

    A: Yes, we sincerely suggest that customers should have some samples

    of required fans for testing because the truly performance of fans can be

    fully demonstrated after testing is conducted.

    Q: Can I have a discount for the quoted price?

    A: The quoted price is based on annual usage quantity. If annual usage

    quantities increase, please provide the information to our sales.

    We will provide you a further discount.

    Q: What is the warranty of products?

    A: All of our products have 1 year warranty. Every product has its own

    production code. This code is able to track the production time.

    Q: Could you print our company LOGO on the nameplate and package?

    A: Yes, we accept OEM orders.
